Fiberglass Covered Wire

Types of Fiberglass Insulated Wire
Fiberglass Round Aluminum / Copper Wire: 1.0–7.0mm

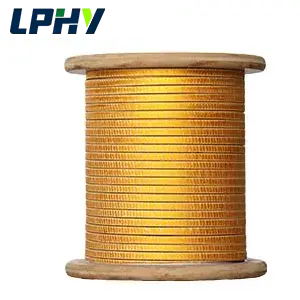

Fiberglass Flat Aluminum / Copper Wire: thickness: 0.9–10mm, width: 3-25mm

Model: single layer, double layers
Thermal class: 130, 155, 180(Class H), 200(Class C)

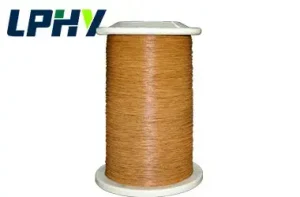

Fiberglass Covered Wire

Materials- glassfiber

The fibre covering shall consist of a combination of polyester and glass fibres. The glass fibres shall be electrical-grade continuous-filament glass yarn. The polyester fibre shall be a high-grade yarn resulting from the linear polymerization of ethylene glycol and terephthalic acid. The maximum content by weight of polyester fibre in the yarn shall not exceed 50 %.

Types and specifications

Products	Types	Thermal Class	Insulation Materials	Diameter / Dimension	Grades of thickness
	Glass-fiber round copper wire	155℃	Polyester glass-fibre wound unvarnished and fused, or resin or varnish impregnated, bare or enamelled	0.5mm – 5mm	PG1: bare conductor with 1 layer of polyester glass fibre or 2 layers of finer polyester glass fibres PG2: bare conductor with 2 layers of polyester glass fibre; Grade 1 PG1: enamelled grade 1 (grade 1) with 1 layer of polyester glass fibre (PG1); . Grade 1 PG2: enamelled grade 1 (grade 1) with 2 layers of polyester glass fibre (PG2); Grade 2 PG1: enamelled grade 2 (grade 2) with 1 layer of polyester glass fibre (PG1); Grade 2 PG2: enamelled grade 2 (grade 2) with 2 layers of polyester glass fibre (PG2).
		155℃	Polyester glass-fibre wound fused, unvarnished, bare or enamelled
		155℃	Polyester glass-fibre wound, resin or varnish impregnated, bare or enamelled
		180℃	Polyester glass-fibre wound, resin or varnish impregnated, bare or enamelled
		200℃	Glass fibre wound, resin or varnish impregnated, bare or enamelled
		180℃	Glass fibre wound, resin or varnish impregnated, bare or enamelled	For bare covered wires (grade GL2): 0.50 mm up to and including 5.00 mm; For grade 1 enamelled wires (grades 1GL1 and 1GL2): 0.50 mm up to and including 1.60mm; For grade 2 enamelled wires (grades 2GL1 and 2GL2): 0,500 mm up to and including 5.00 mm.	a) a single layer of glass-fibre, b) a double layer of glass-fibre, with one layer applied in the direction opposite to that of the other layer.
		200℃	Polyester glass-fibre wound, silicone resin or varnish impregnated, bare or enamelled	For bare covered wires (grade GL2): 0.50 mm up to and including 5.00 mm; For grade 1 enamelled wires (grades 1GL1 and 1GL2): 0.50 mm up to and including 1.60mm; For grade 2 enamelled wires (grades 2GL1 and 2GL2): 0,500 mm up to and including 5.00 mm.	a) a single layer of glass-fibre, b) a double layer of glass-fibre, with one layer applied in the direction opposite to that of the other layer.
	Glass-fiber rectangular copper wire	155℃	Polyester glass-fibre wound unvarnished and fused, or resin or varnish impregnated, bare or enamelled	Width:2mm – 16mm Thickness: 0.8mm – 5.6mm	PG1: bare conductor with 1 layer of polyester glass fibre or 2 layers of finer polyester glass fibres PG2: bare conductor with 2 layers of polyester glass fibre; Grade 1 PG1: enamelled grade 1 (grade 1) with 1 layer of polyester glass fibre (PG1); . Grade 1 PG2: enamelled grade 1 (grade 1) with 2 layers of polyester glass fibre (PG2); Grade 2 PG1: enamelled grade 2 (grade 2) with 1 layer of polyester glass fibre (PG1); Grade 2 PG2: enamelled grade 2 (grade 2) with 2 layers of polyester glass fibre (PG2).
		155℃	Polyester glass-fibre wound, resin or varnish impregnated, bare or enamelled
		180℃	Polyester glass-fibre wound, resin or varnish impregnated, bare or enamelled
		200℃	Glass fibre wound, resin or varnish impregnated, bare or enamelled
		220℃	Polyester glass-fibre wound, silicone resin or varnish impregnated, bare or enamelled
		155℃	Polyester glass-fibre wound fused, unvarnished, bare or enamelled		GL1: one glass fibre covering over a bare conductor; GL2: two glass fibre coverings over a bare conductor: grade 1 GL1: one glass fibre covering (GL1) over grade 1 enamelled conductor (grade 1) grade 1 GL2: two glass fibre coverings (GL2) over grade 1 enamelled conductor (grade 1) grade 2 GL1: one glass fibre covering (GL1) over grade 2 enamelled conductor (grade 2) grade 2 GL2: two glass fibre coverings (GL2) over grade 2 enamelled conductor (grade 2)
		180℃	Glass fibre wound, resin or varnish impregnated, bare or enamelled

Want to Learn More About Our Products

Click Here to Download

Download

Packing for Fiberglass Covered Wire

Labels shall be attached to each packaging unit as agreed between supplier and user and shall include the following information:
a) manufacturer’s name and/or trade mark;
b) type of wire and insulation, for instance trade name and/or IEC specification number;
C) net mass of wire;
d) nominal dimension(s) of wire and grade of insulation;
e) date of manufacture.
